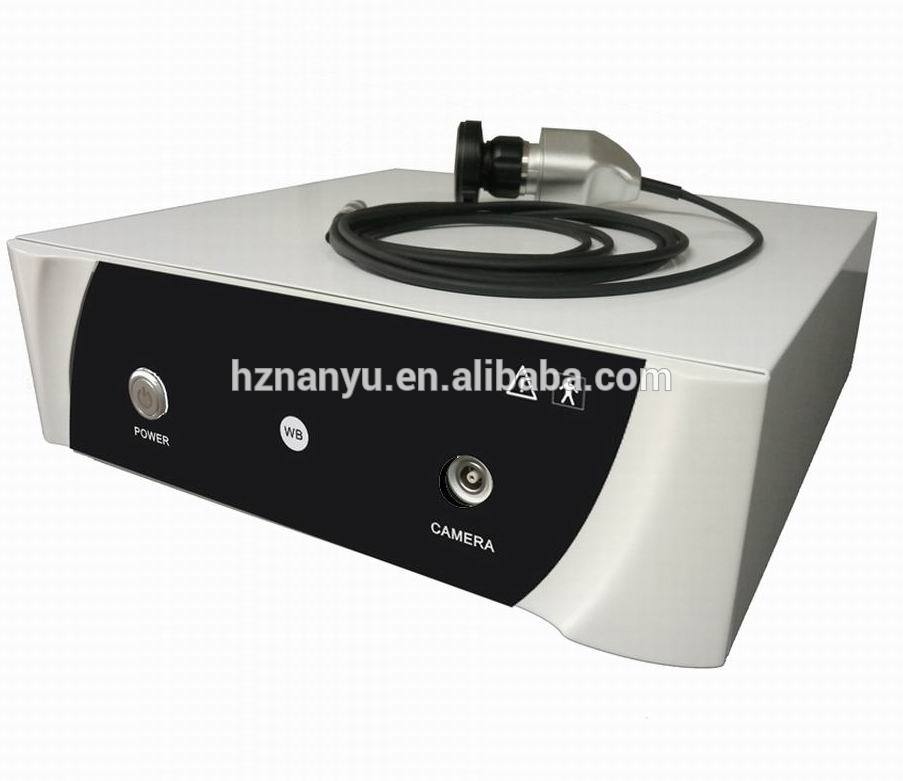

1.

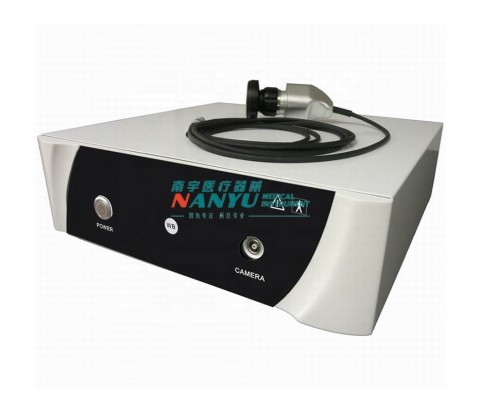

sensor

SONY 1/2.8 SUPER HAD CMOS

2

pixel

1920*1080(1080P)

3

definition

≥1100line

4

Minimum illumination

0.1LUX

5

white balance

Automatic / manual setting

6

Signal to noise ratio

60DB(max)

7

Optical interface

F20

8

Menu function

Image setting: one key freezing and 10 times electronic magnification; brightness, sharpness, color concentration, gain, etc

System settings: white balance, freezing, digital amplification, dynamic wide dynamic, edge brightness compensation, etc

Endoscopic mode selection: no less than seven operation modes such as otolaryngoscope, laparoscopy and hysteroscopy are switched and preserved (leading in China);

9

Adjustment method

OSD(on-screen display)manu

10

Video output

One HDMI, one DVI, two CVBS

1

LCD screen

27 inch LCD monitor

2

resolution ratio

1920*1200

3

ratio

16:9

4

colour

1.07B

5

brightness

350±10% cd/m²

6

Maximum brightness

550cd/m²

7

contrast ratio

1000:1

8

viewing angle

178/178

9

response time

8ms

10

Input interface

DVI/VGA/VIDEO/S-VIDEO/RGB/YPBPR/HDMI

11

Output interface

DVI/RGB/YPBPR/VIDEO/S-VIDEO/HDMI

12

Screen type

CCFL  IPS
